Connex P4Z

The Connex P4 is a 4-leg program. Available as an individual desk and as a group workstation. The workspaces feature a sleek design with a desk surface that is suspended on the frame.

The desks come with O- or U-legs at fixed or adjustable height (62–85 cm).

Connex P4Z

At fixed height or adjustable in height

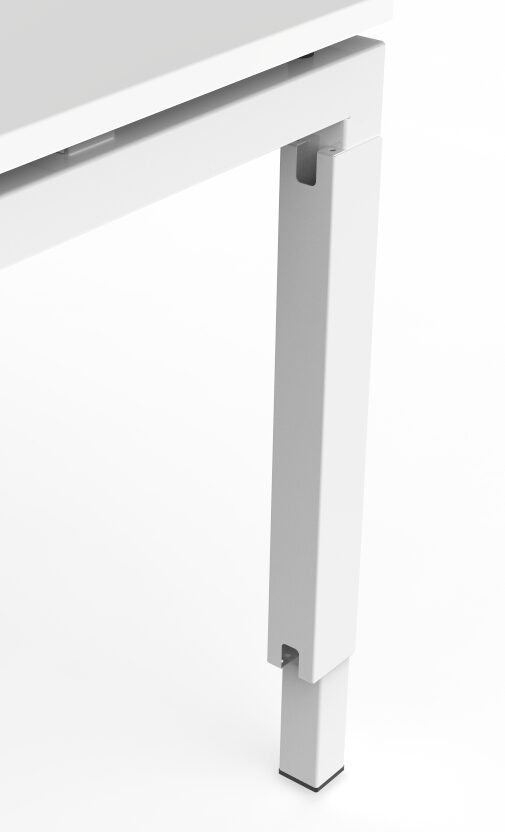

U-leg (height = 75 cm / 62-85 cm)
O-leg (height = 75 cm / 67-85 cm)
90° extension possible
180° extension possible

Connex P4Z

At fixed height or adjustable in height
U-leg (height = 75 cm / 62-85 cm)
O-leg (height = 75 cm / 67-85 cm)
180° extension possible
During extension, the middle leg is retracted.

Cable management

Tube	Cable sleeve	Double connectable cable guides

For sitting and standing height Total length: 80 or 130 cm (Shortening is possible) Color: white, black, or aluminum	With double zipper closure total length of 80 cm or 160 cm	Set of 5 cable clips Color: black
Cable tray tiltable	Central cable tray tiltable

Double-sided foldable Adjustable in height: 8, 10, or 12 cm	Double-sided foldable Adjustable in height: 8, 10, or 12 cm

Electrification


Clapet with brush Color: white or aluminum	Clapet with brush Color: white, black or aluminum	Includes power cable (and RJ45 cable) of 3m. Color: white or aluminum

Ø 8 cm Colors: white, light gray, or black	Includes power cable (and RJ45 cable) of 3m. Color: white or aluminum	Optional power block of your choice Compatible with step 3-6 positions or Meyer Netbox M3-5 Color: white, black, or aluminum

Tops

Our wood comes from sustainably managed forests and is PEFC certified.

Melamine		Softtouch
	Ahorn (AH)		Nero ingo: Black (EZ)
	Dark beech (DB)
	Driftwood (DW)
	Oak anthracite (EK)
	Ferrara oak (FE)
	Vincenza natural oak (VE)
	Light grey (LG)
	Light beech (SB)
	Natural walnut dijon (ND)
	Verona walnut (VN)
	White (WT)
	Black (ZW)
The tabletops comply with the EN 14322 standard. The melamine tabletop is made from particleboard with a thickness of 25 mm and a density of 650 kg/m³.

Metal


WT: white	GS: light grey	GS: dark grey	ZW: black	AL: aluminium

Panneaux

	Desk UP – 3 cm Height: 40, 50, 65, 70, or 80 cm Padded wooden panel with a layer of acoustic foam. Our panels are rectangular. If you prefer, you can round the corners.
	Desk UP – 4.3 cm Height: 40, 50, 65, 70, or 80 cm Padded acoustic panel composed of a lightweight wooden sandwich panel on both sides. Equipped with high-quality acoustic material. Our panels are rectangular. If you prefer, you can round the corners.
	Desk UP – top-mounted You can choose to mount it on top or under the desk.
	Desk UP – central rail-mounted On the central rail, you can attach a panel. When you combine the side legs and a panel along the entire length of the desk, the panel will be 3 cm higher.
	Packman Side partition for top mounting. Padded MDF panel. For tops up to 4.5 cm thick.

Counter & modesty panel

You can transform Connex desk into a reception desk using a back panel and/or a counter.

	Counter The counter is supported by a round leg (diameter 40 mm). Mount the counter on the top before attaching the top to the frame. The top is available in various melamine colors and has a thickness of 18 mm.
	Modesty Panel There is a free space of 3.5 cm (floating effect) between the desk surface and the back panel. The back panel should be 20 cm shorter than the complete length of the desk. This way, it fits within the frame of the legs. The modesty panel conflicts with the cable duct under the surface. Both options cannot coexist as standard.

Counter

The counter is supported by a round leg (diameter 40 mm).
Mount the counter on the top before attaching the top to the frame.
The top is available in various melamine colors and has a thickness of 18 mm.

Modesty Panel

There is a free space of 3.5 cm (floating effect) between the desk surface and the back panel.
The back panel should be 20 cm shorter than the complete length of the desk.
This way, it fits within the frame of the legs.
The modesty panel conflicts with the cable duct under the surface.
Both options cannot coexist as standard.

Height adjustment systems


Fixed work height	Comfort system	Crank system
Height: 75 cm	Height: 62/67 – 85 cm	Height 62/67 – 85 cm

Connex P4Z

Thanks to the floating top and slender legs, this desk exudes elegance. The workstations can be expanded into an L-shape or laterally extended with a retracted leg.

The desks are available with O- or U-legs. They come in fixed height (75 cm) or with a height-adjustable system.

Connex P4Z bench

Group workspaces for a modern office landscape.

Connex P4Z Bench

Less pronounced hierarchical structure
Open spaces with ample light give us a good feeling.
Encouragement of collaboration
Numerous acoustic solutions thanks to Desk Up and Packman.
Expandable with numerous options.

Manuals

Manuals: bench

Manuals: bench – 180°

Manuals: desk – 180°

Manuals: desk – 90°

Manuals: comfort height adjustment

Information

Brochure Connex (pages) (NL/FR)

Brochure Connex (spreads) (NL/FR)

Brochure colors (NL/FR)

Cleaning advice: coated steel (NL)

Cleaning advice: mélamine (NL)

Cleaning advice: Softtouch (NL)

Antibacterial properties: melamine (NL)

Connex in pCon
